Understanding the Delivery Requirements for 40ft Containers
A 40ft container requires more space to deliver, so having firm, dry ground and plenty of room for the truck to turn, back in, and line up is essential. Because of its length, the driver needs a wider approach, clear access, and enough maneuvering space to safely position the truck. With a bit of preparation to ensure the delivery path is open and the ground is suitable, the drop-off is smooth, safe, and efficient. Here is everything you need to know before we arrive.

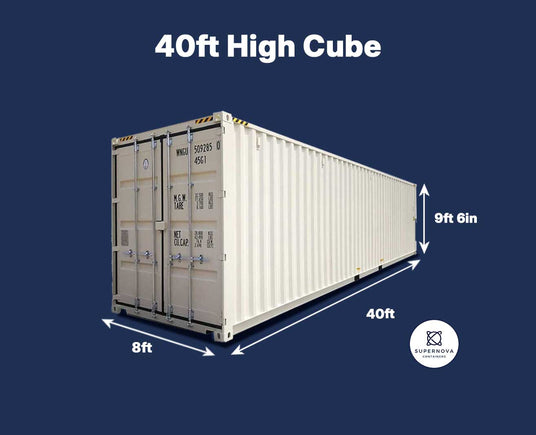

Measurements for a 40ft High Cube Container
Measurements may vary depending on the container (used vs new, etc.)
Internal length
39 ft 6in / 12.03 m
Internal width
7 ft 9 in / 2.35 m
Internal height
8 ft 10 in / 2.69 m
Tare weight
8,160 lbs / 3,700 kg
Payload capacity
63,490 lbs / 28,800 kg
Cubic capacity
2,698 cu ft / 76.4 m³

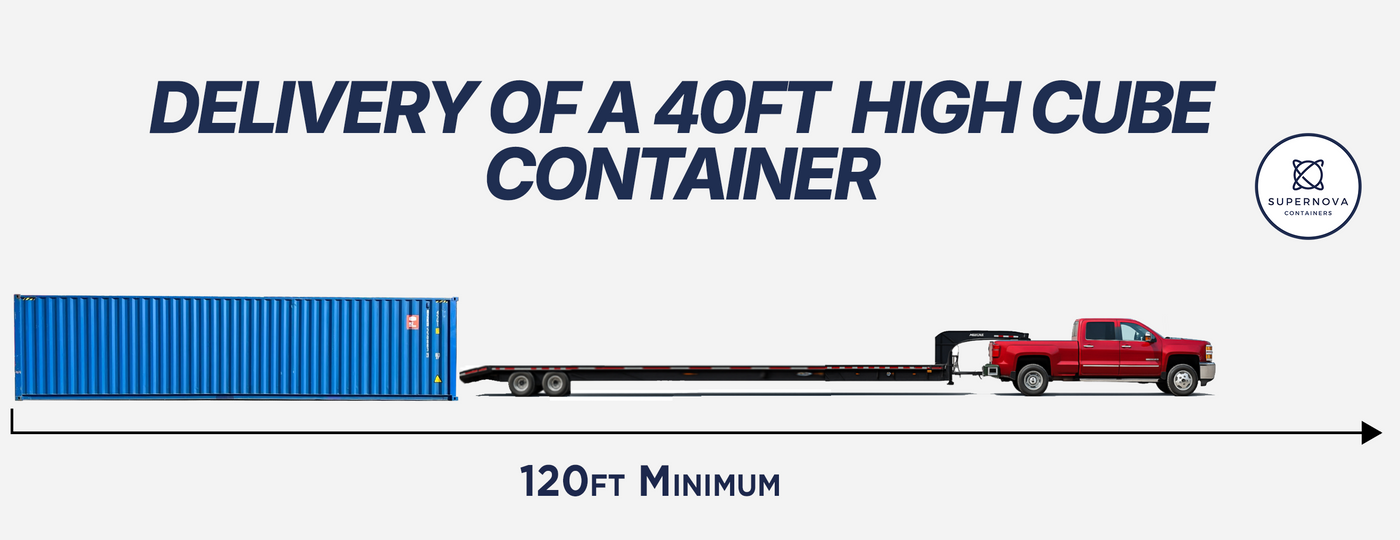

Delivery of a 40ft Container
A 40ft container is delivered on a semi with a 40ft tilt-deck trailer and requires a minimum of 120 ft (36.6 m) of straight-line clearance.
Straight line clearance refers to the required continuous straight distance (length) and unobstructed vertical/horizontal space needed for the delivery truck to maneuver and unload the container.
Ground Preparation
Why Firm, Dry Ground Matters for Your Container Delivery
To ensure a smooth and safe delivery, the truck needs to drive onto firm, level, and dry ground. Delivery trucks carrying 20ft and 40ft containers are extremely heavy, and soft or muddy areas can cause the truck to sink or get stuck. When the ground is stable, the driver can back in, line up properly, and place the container exactly where you want it.
Proper ground conditions help avoid delays, failed deliveries, and additional wait times. A simple check of your site before delivery makes the entire process faster, safer, and hassle-free.
Choosing Door Direction
When you order your container, you'll choose which direction the doors should face when they are loaded on the trailer.This decision affects how the container will be unloaded at your site.
Container Doors Loaded Doors to Cab
At the depot, the container will be loaded with the doors of the container facing the cab of the truck.

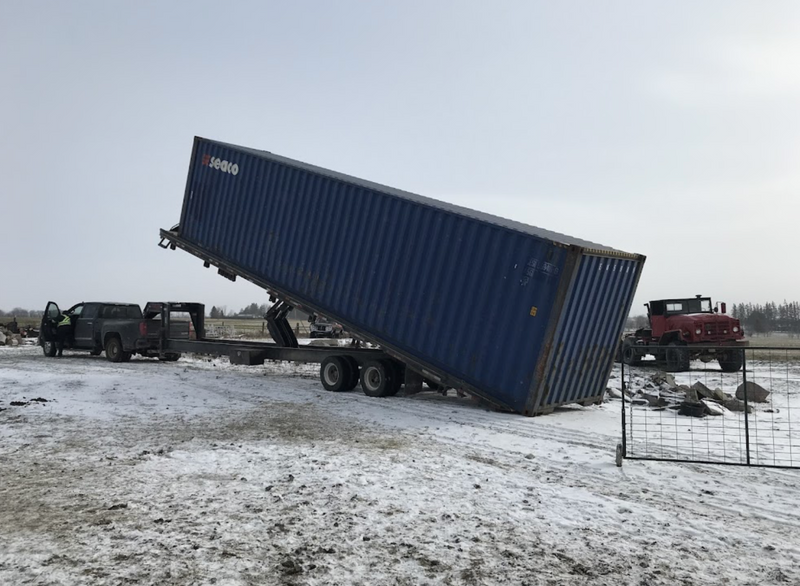

At the delivery site, the truck will back into the position where you want your container and tilt the container off. The container doors will come off last.
Container Doors Loaded Doors to Rear
At the depot, the container will be loaded with the doors of the container facing the rear of trailer.
At the delivery site, the truck will back into the position where you want your container and tilt the container off. The container doors will come off first.
